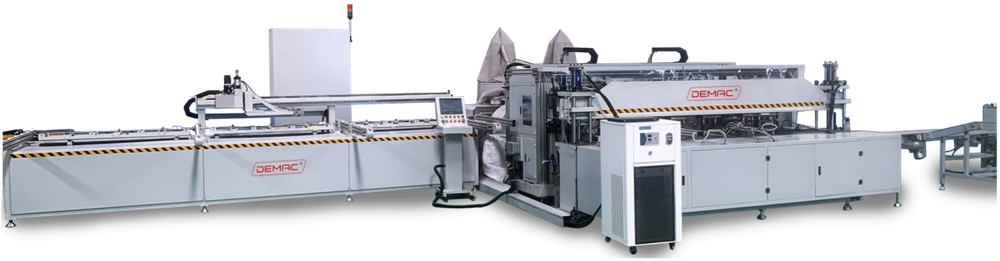

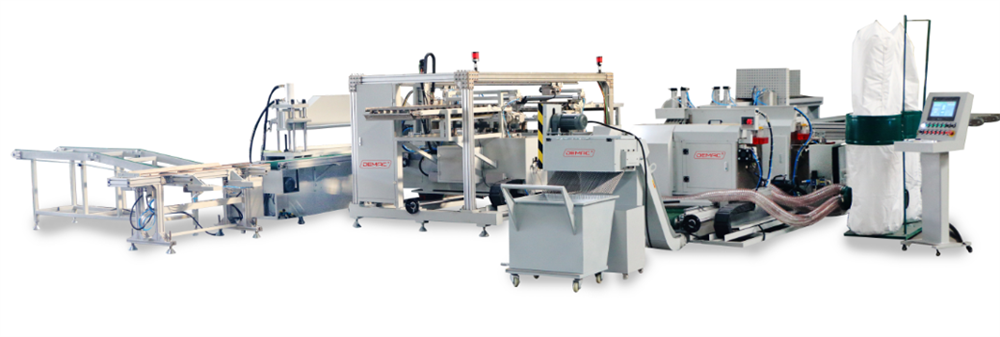

PV frame production line has electrical intelligence, integration into the processing technology, by feeding transmission, sawing, C-side punching, automatic angle code, internal B-side riveting point, length detection and other processes.

The photovoltaic frame production line is composed of two modules, the sawing line and the stamping line, using a bus control motion control system to meet the automation control requirements of the manufacturing process, achieve high efficiency, high precision, and achieve full automation.



Parameter:

==> Solar PV Frame Cutting Centre is for multi quantity processing for long and short frame

Long frame processing line:

-  Automatic feeding
- Automatic cutting
- Automatic aluminum chips collectio
- Automatic riveting point
- Automatic punching

Short frame processing line:

- Automatic feeding
- Automatic cutting
- Automatic aluminum chips collection
- Automatic installation of corner connector
- Automatic punching

Adopt clip-on corner connector system. Whole lines with output capacity around 1000pcs long frame per hour and 1000pcs short frame per hour

Cutting Angle (auto selection):
Long frame:  45degree and 55degree
Short frame:  35degree and 45degree

Short Frame length: 680-1600mm
Long Frame length: 1400-2600mm (accept customized)
