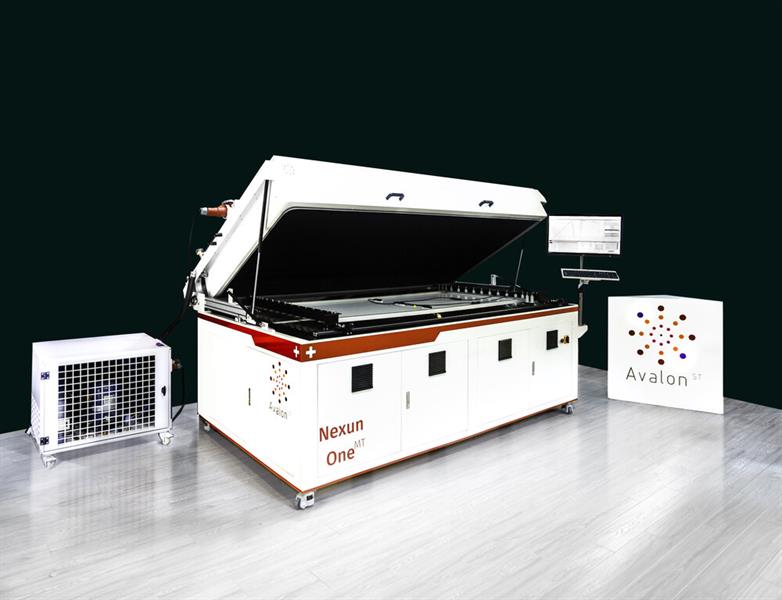

Thermal Chamber

15-75°C

The fully automatic thermal chamber allows measurement across 15-75°C.

Save time and work for your team!

HJT TEMPERATURE COEFFICIENT

The Nexun One is the only system on the market that allows you to measure the highest hysteresis HJT panels can be measured in a single flash. Making the temperature coefficient measurement of these new technologies like a breeze.

Spectrum Tuning

The Nexun One, with 32 independent wavelengths enables full control of the spectrum.

Adjust each wavelength precisely, create your own spectrum, simulate regions like desert, city, or sunrise & sunset.

Activate specific junction for HJT, bringing new services to your laboratory.

Set your spectrum, and change in a single click!

Unrivaled Spectrum

BEAT XENON SPECTRAL MATCH

The Nexun One beats even the best Xenon systems, thanks to its patented IR Technology. Xenon exhibit large peaks on the IR region, drastically increasing uncertainty as spectrometer cannot reliably measure massive peaks and may saturate / average.

MATCH THE NEW STANDARD

The Nexun One ensures that you meet the highest industry standards. Its spectrum reaches A+ for both IEC60904-9 Ed. 2 and Ed. 3, with an SPD lower than 15% and SPC higher than 98% over the 300-1200nm range. Its spectral deviation is lower than Xenon and other LED solar simulators.

OPTIMIZE FOR A SPECIFIC STANDARD

Typical system spectral match according to IEC60904-9 when optimized for each of the standards independently.

Band Optimized for

IEC60904-9 Ed. 2

Band Optimized for
IEC60904-9 Ed. 3

SPD Optimized for
IEC60904-9 Ed. 3
13.3%

COMPROMISED FOR ALL STANDARDS

Typical system spectral match according to IEC60904-9 when optimized compromised for Bands Ed. 2, Bands Ed 3 & SPD altogether.

General Optimized
IEC60904-9 Ed. 2

General Optimized
IEC60904-9 Ed. 3

• Actual measurements, performance may vary, represents typical results.

• IEC60904-9 Class A is ±25%, Class A+ is ±12.5%

• Indicated band deviation values in %

Proven Stability

The Nexun One is production-proven in 24/7, 15s cycle time and retains its A+ A+ A+ rating over time, in the harshest conditions, which is often not the case of other simulators thanks to advanced thermal management and precise, in-house designed, high accuracy electronic regulation.

LONG TERM STABILITY

The Nexun One has demonstrated higher long-term stability than its competitors in a production environment, after months of data analysis.

LIGHT SOURCE LONG LIFETIME

With an LED lifetime of over 36’000’000 flashes; and the 1’500’000 flashes IR source; ensure the minimum maintenance requirements at the lowest ownership cost.

Industry’s most advanced software

The Nexun is powered by the industry’s most advanced software, with functionalities that speed up the lab process, improve traceability and work efficiency while limiting potential user errors.

Internal Database, External Database, Measurement Drag & Drop, Curve Zooming, Raw data extraction, User Management, Real-Time Curves, Recipes Management… We get you covered!




Specifications
